Self-tipping container with side guard
Description

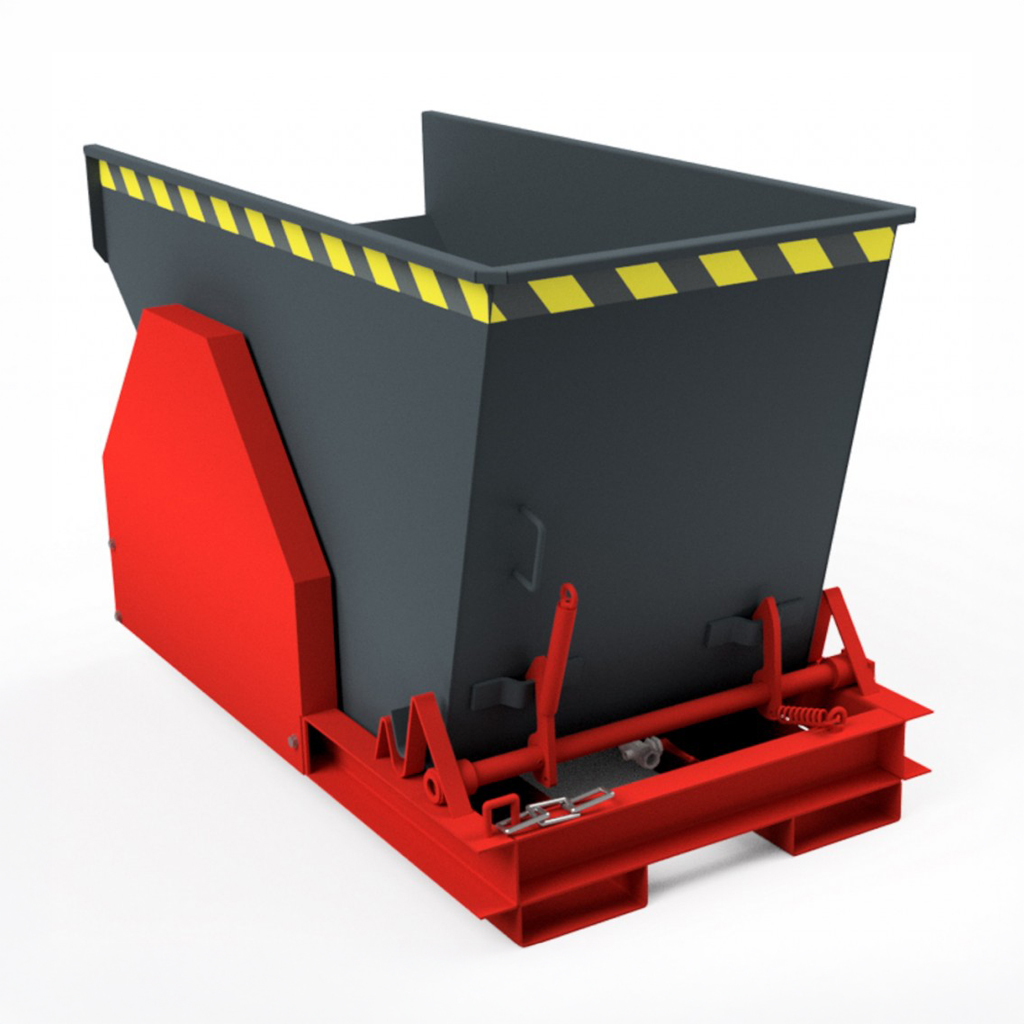

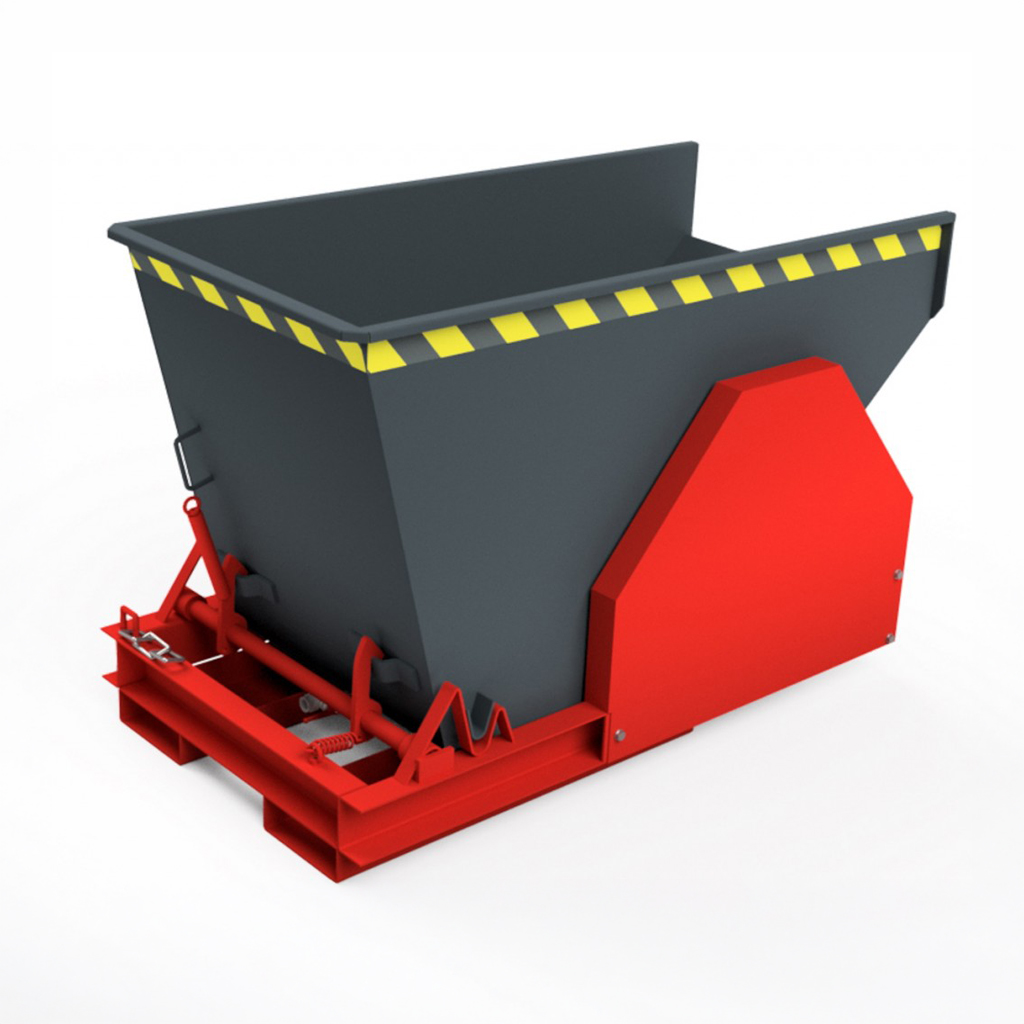

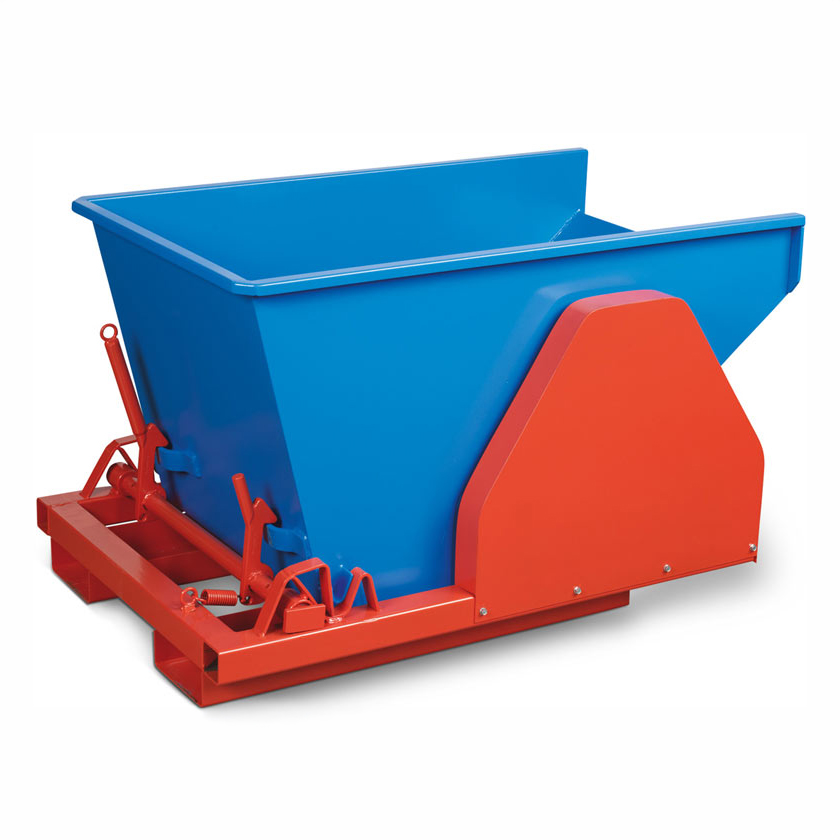

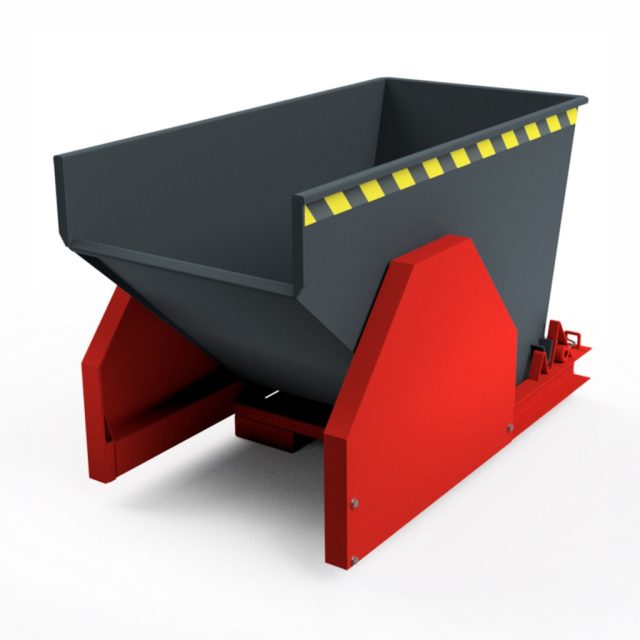

Self-tipping container with side guard
Self-tipping container has various uses in the everyday production process, for example as a conveyor for waste materials or as a means of Transport for bulk and small parts. The container has a capacity of up to 2000 liters and a load capacity of 3000 kg. The Bartels-Conjar container is produced in our production facilities, and can be self-tipping, self-loading and secured with a safety handle.

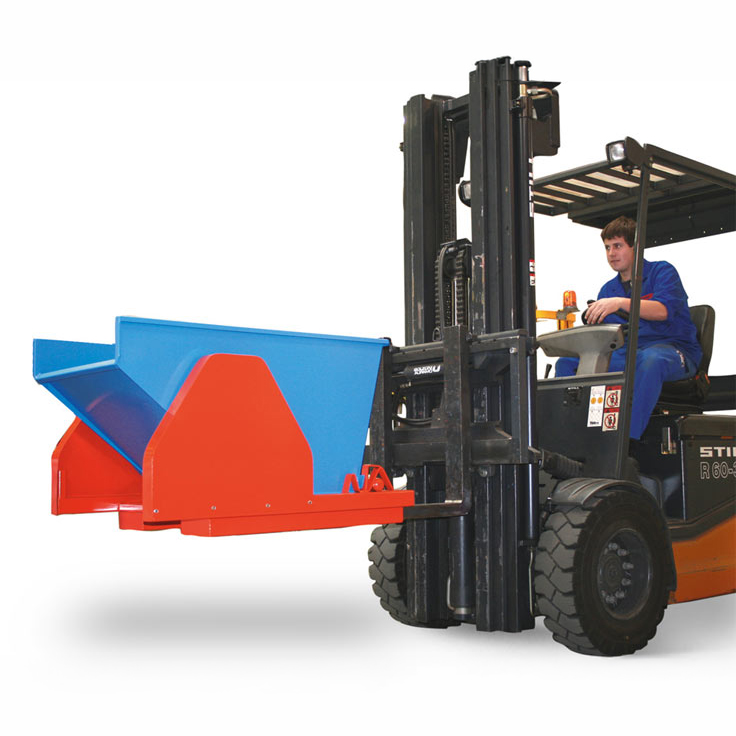

With the automatic handle, the driver of the forklift can empty the container from the cabin at high altitudes without an additional pull cable.
With the automatic handle, the driver of the forklift can empty the container from the cabin at high altitudes without an additional pull cable.
- Advantages
- Handling
- Construction
- Technical specifications
- Ideal for collecting and transporting waste material produced in the product process
- Thanks to the Rollo mechanism there is no impact on the lifting structure of the forklift
- The mechanism is protected by side guards
- The safety chain prevents the container from falling off the forklift

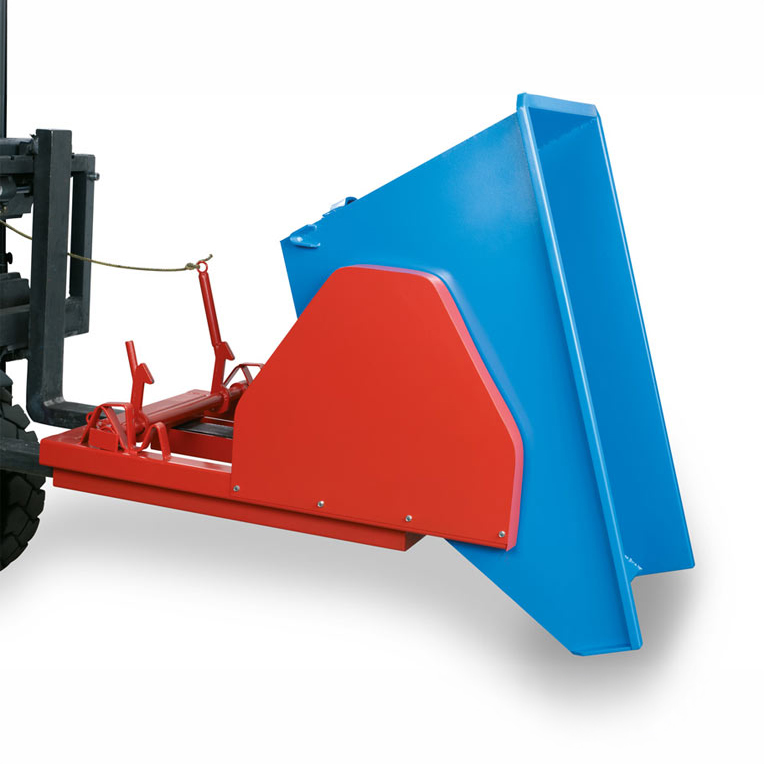

The container is automatically emptied and then returned to its starting position. The driver does not have to leave the cabin of the forklift and thus saves time and reduces physical effort. During rapid and complete emptying of the container, the mechanism prevents sudden return to the starting position and eliminates the impact on the lifting platform of the forklift.
- Solid steel structure with transverse reinforcements
- Sides are made of one piece of sheet of metal with reinforced edges
- Standard color: blue container, RAL 5012; red box, RAL 2002
- On request: it is possible to make a custom version according to your dimensions and paint is available in all RAL colors
| Model | Volume | Load capacity | Dimensions (W × L × H) |
Fork slots | Central gap between Fork slots | Weight |
|---|---|---|---|---|---|---|
| SKS 30 | 300 litres | 1200 kg | 770 × 1163 × 717 mm | 200 × 60 mm | 460 mm | 115 kg |
| SKS 50 | 500 litres | 2500 kg | 785 × 1401 × 930 mm | 200 × 60 mm | 460 mm | 155 kg |
| SKS 60 | 600 litres | 2500 kg | 1040 × 1401 × 930 mm | 200 × 60 mm | 460 mm | 160 kg |
| SKS 75 | 750 litres | 2500 kg | 1040 × 1401 × 930 mm | 200 × 60 mm | 460mm | 170 kg |
| SKS 90 | 900 litres | 2500 kg | 1300 × 1401 × 930mm | 200 × 60 mm | 600 mm | 225 kg |
| SKS 100 | 1000 litres | 2500 kg | 1430 × 1401 × 960mm | 200 × 60 mm | 600 mm | 235 kg |
| SKS 120 | 1200 litres | 2500 kg | 1685 × 1401 × 960mm | 200 × 60 mm | 600 mm | 260 kg |
| SKS 150 | 1500 litres | 3000 kg | 2075 × 1401 × 980mm | 200 × 60 mm | 800 mm | 295 kg |
| SKS 170 | 1700 litres | 3000 kg | 2330 × 1401 × 980mm | 200 × 60 mm | 800 mm | 315 kg |
| SKS 200 | 2000 litres | 3000 kg | 2220 × 1401 × 1135mm | 200 × 60 mm | 800 mm | 320 kg |
Special designs of self-tipping container
If you need to transport special materials or you need containers of special dimensions in a flexible way, we can respond to your requirements.
Our sales representatives are also available for consultation on your premises, and our engineers will design the concept to your liking.
Our sales representatives are also available for consultation on your premises, and our engineers will design the concept to your liking.
- waterproof container
- wheels of different sizes
- container equipped with drain valve and sieve for separation of material and cooling liquid
- special colors, available all colors from the RAL spectrum
