• Space saving

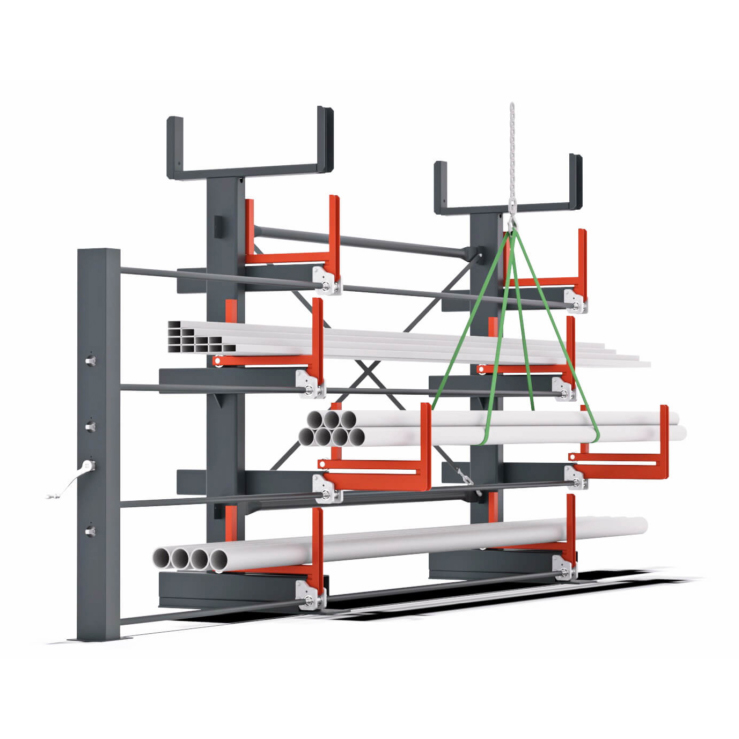

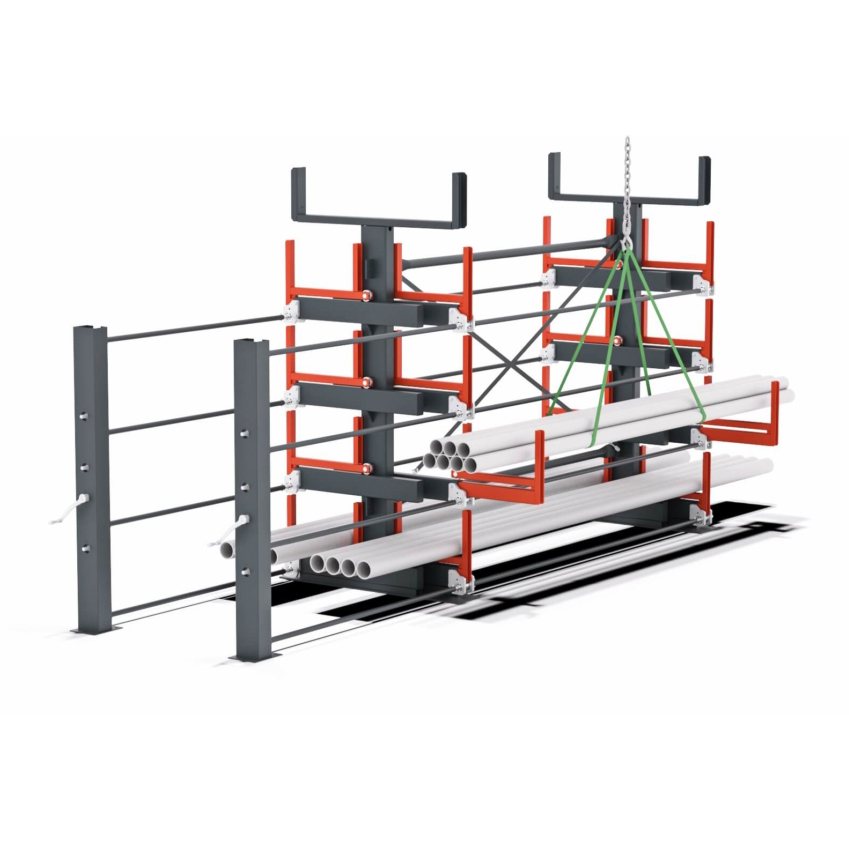

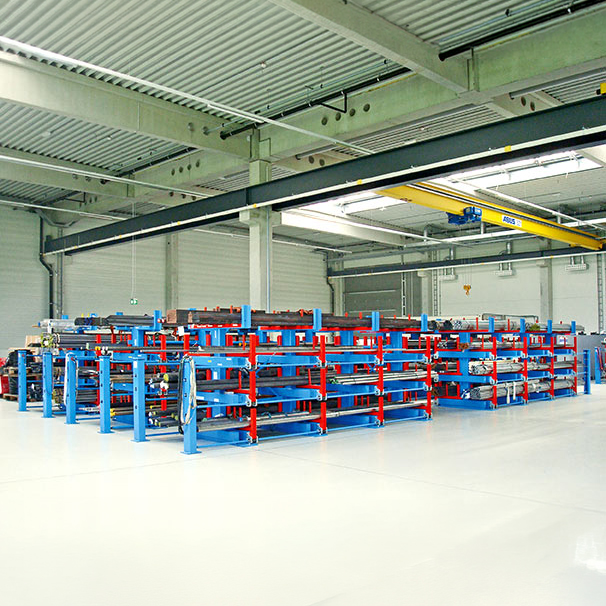

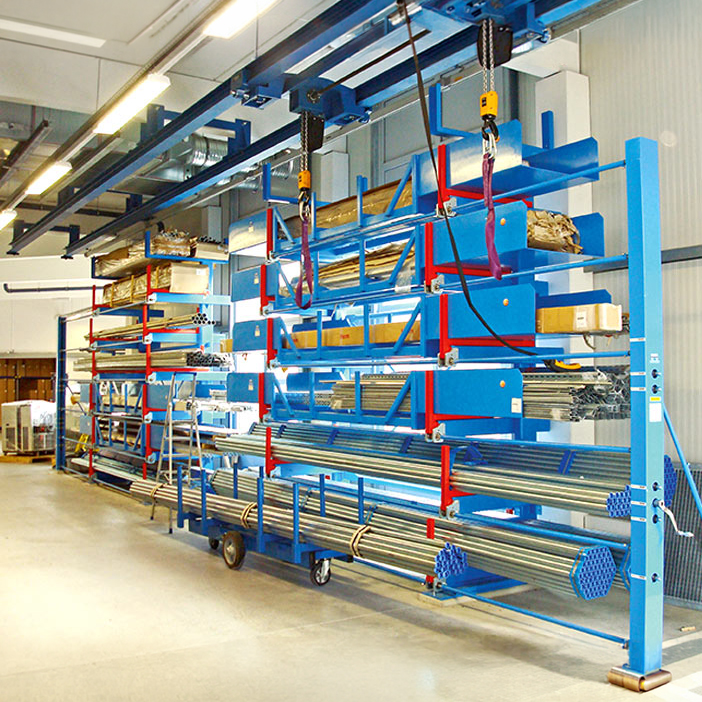

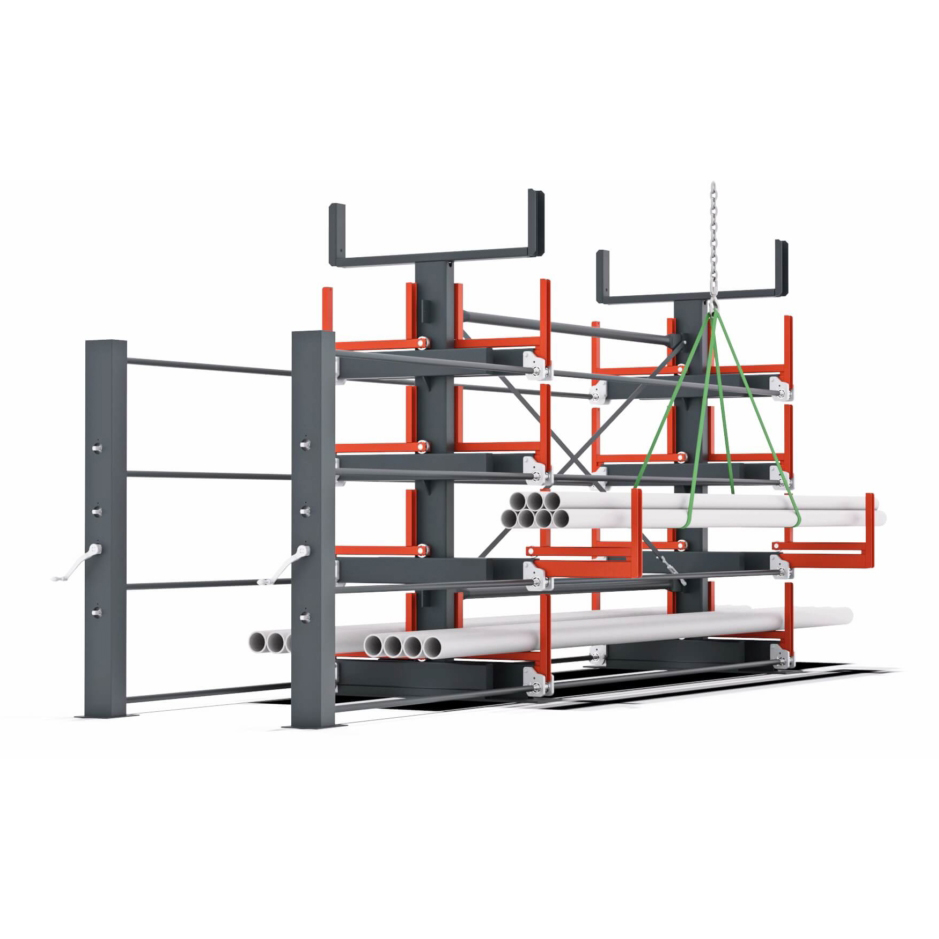

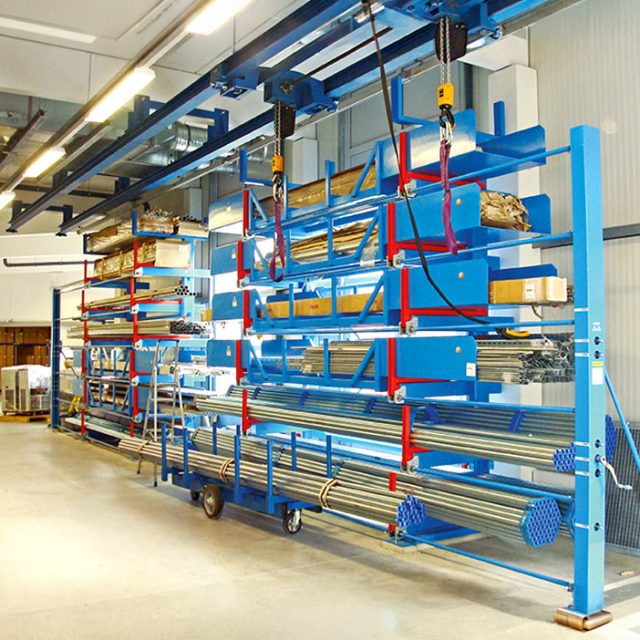

Storage is carried out directly with the ceiling crane. Wider spaces for forklifts, cranes, etc. they are no longer needed.

• Great lengths

Storage of materials longer than 25 m is possible.

• Security

Access to the system is simple, and the shelves are easily filled and various without unnecessary use of force.

• Saving time

Shelves are quickly filled and empty and there is no need to rearrange materials.

• Quick

Fast and efficient access to the material

• Easy handling

Most often, one person can independently operate the rack system.

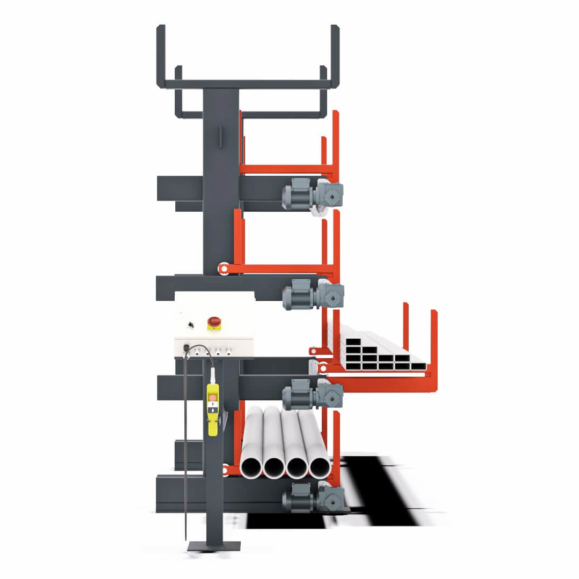

The pivot lever pulls out each arm separately. The gait of the arm is controlled and limited by the length of the arm. The crank and shaft turning ratio is 2.36: 1. Under a full load of 5 000 kg the need is an initial force of 15 kg, after which the handles are turned without much effort.

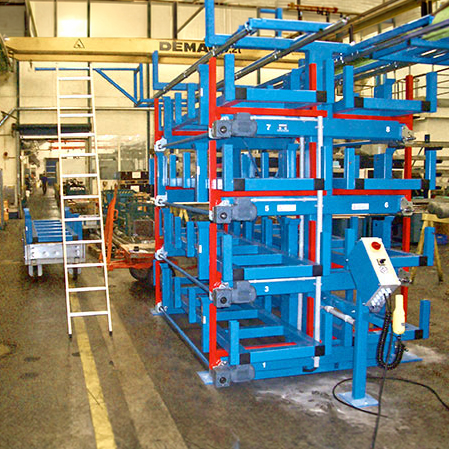

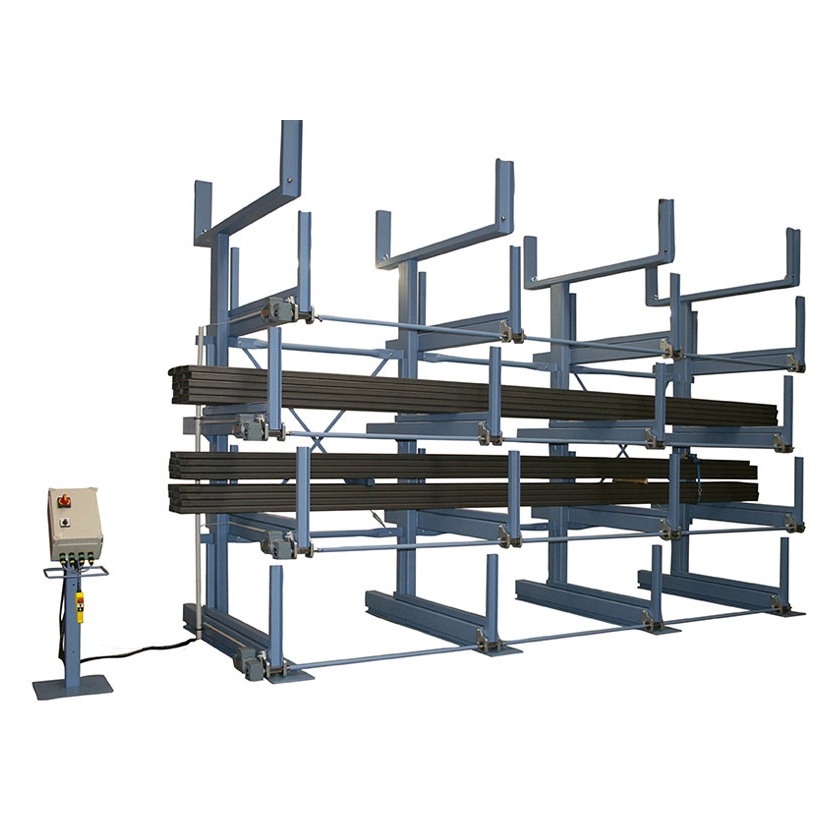

Each system unit consists of at least two basic structures; longitudinal links and a control tower for each side of the column. Depending on the length of the storage material the rack system can have several columns at certain intervals. Storage on high shelves is also possible with the help of platform ladders and cranes.

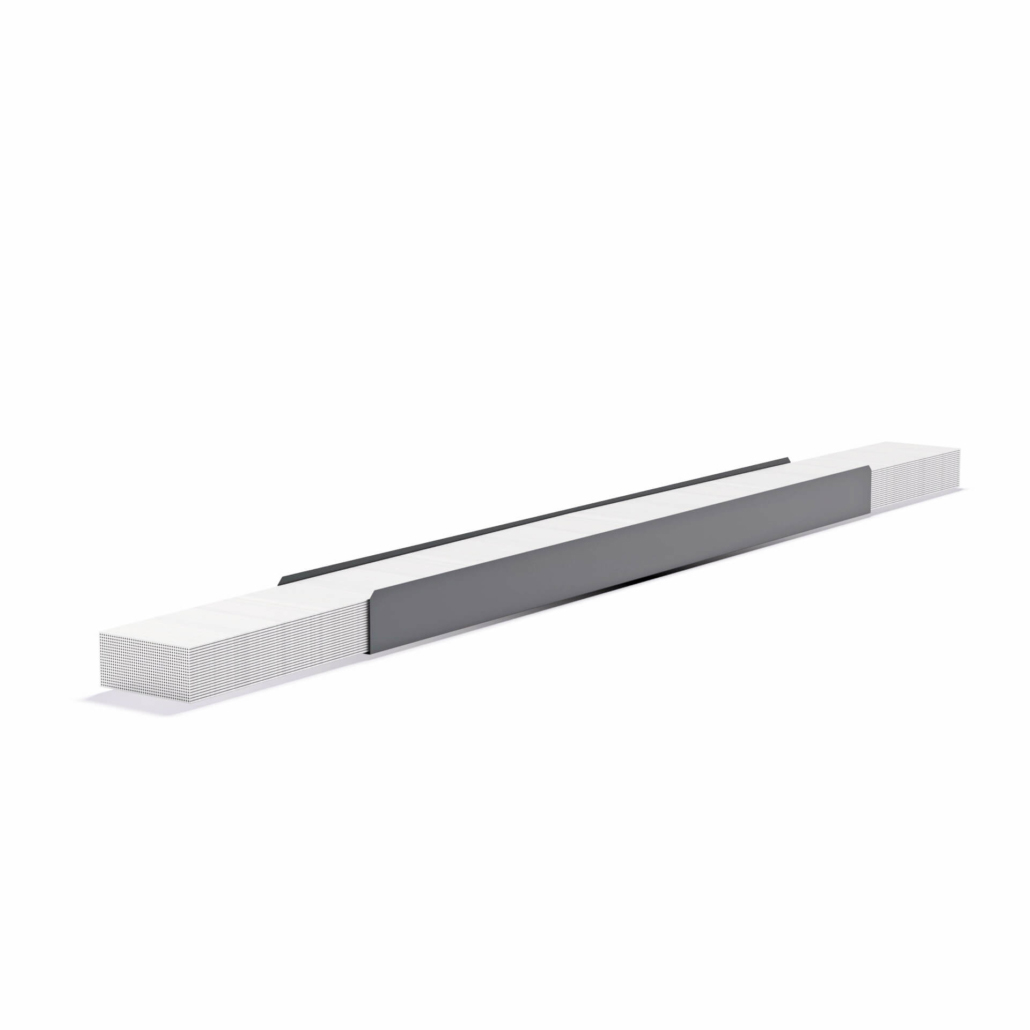

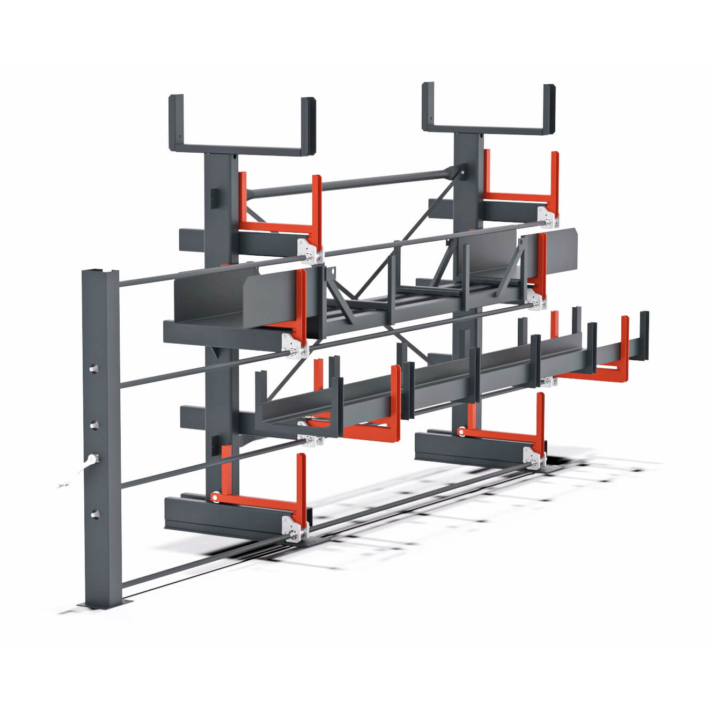

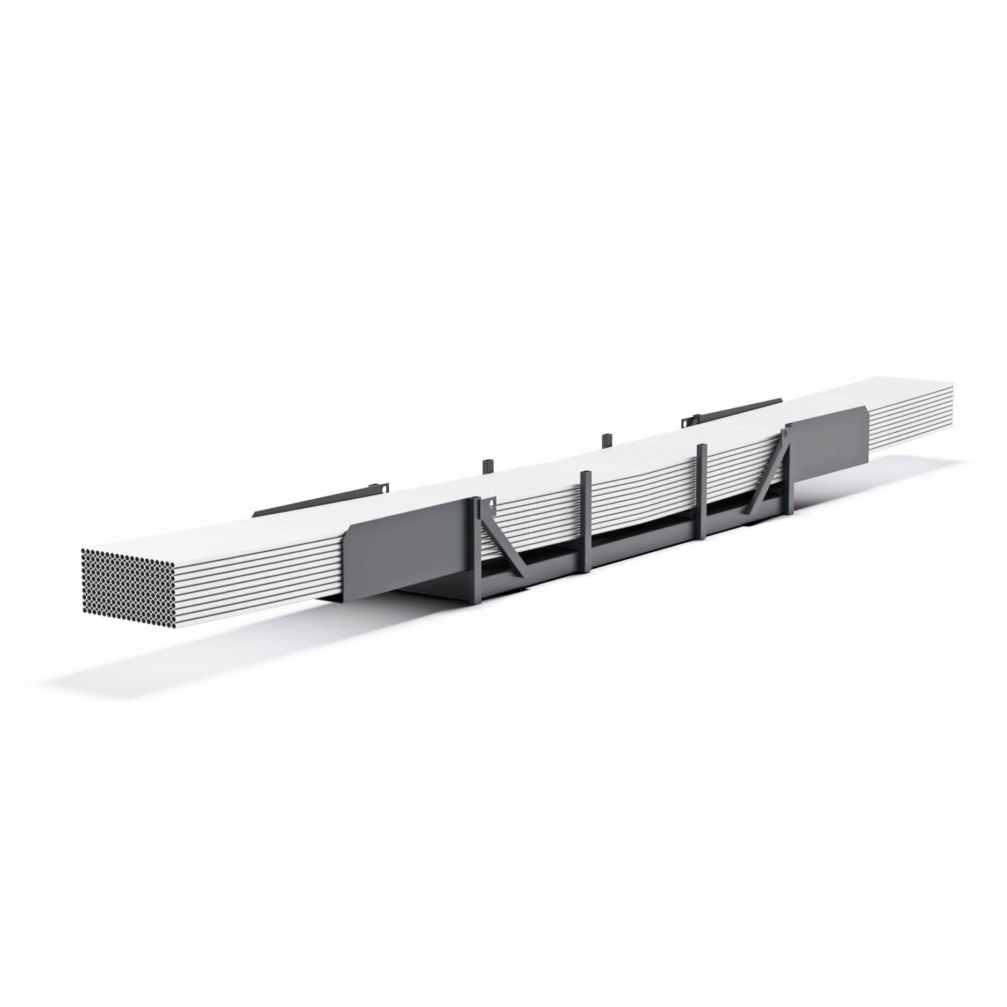

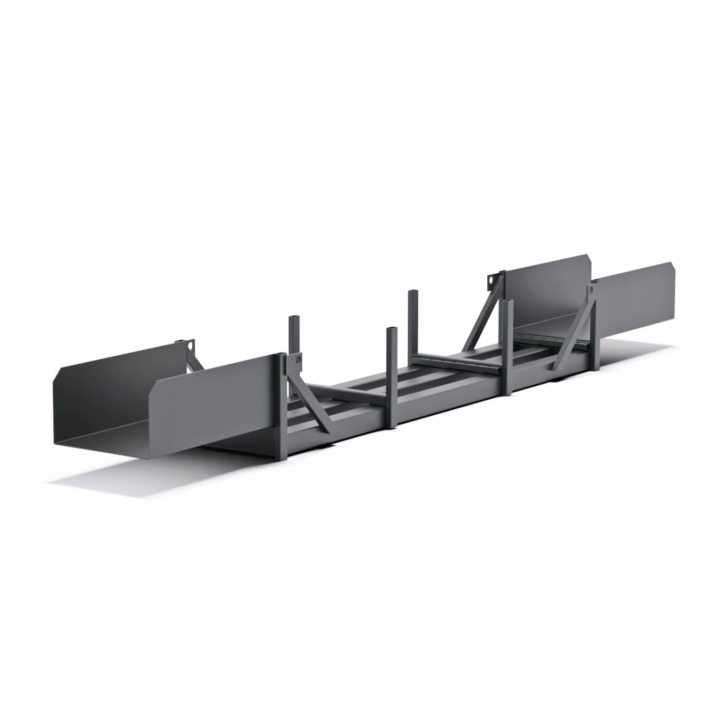

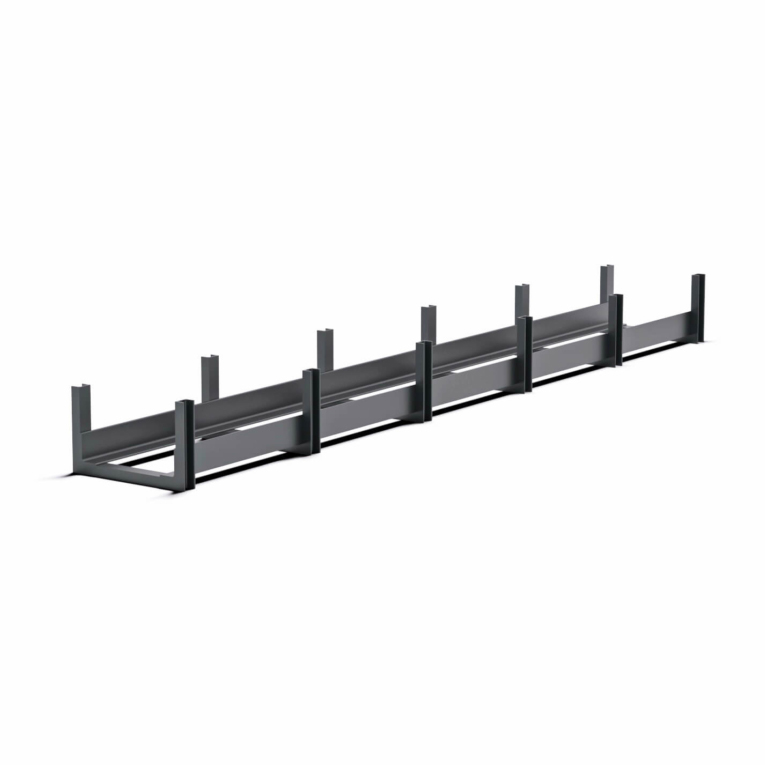

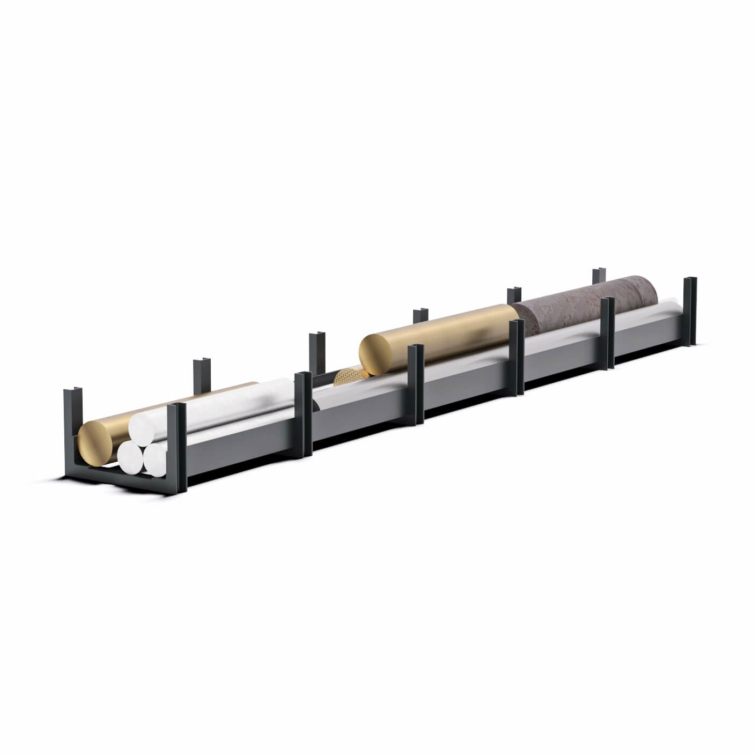

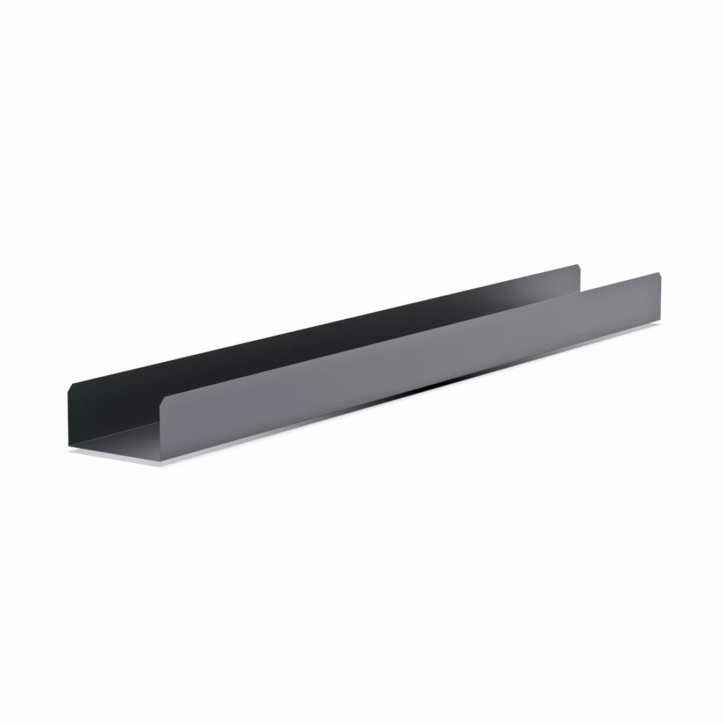

Waste longitudinal material can be stored using load-bearing pallets or column spacers placed as needed.

• Especially high-quality robust construction
• Moving parts use high quality ball bearings
• Rack system composed of two columns and two control towers, is fully welded and complex construction
• Standard color: columns blue RAL 5012, arms red RAL 2002.
• On request: possible production according to your dimensions and coloring in all RAL colors
